PKT High Z-Cable Divider

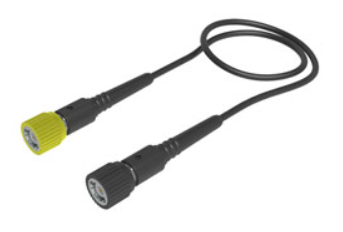

Coaxial (cable divider) probe with BNC shape at the tip of the input (20 types)
- ■ Cable divider (probe with probe tip set to BNC) Input：BNC, Output：BNC
- ■ 280MHz, 300MHz, 350MHz, 400MHz, 500MHz bandwidth
- ■ 2 HF adjustment points
Specifications
| Model name | Attenuation | Input RC | Bandwidth [MHz] | Compatible capacity [pF] | Rise time [nsec] | Cable length [m] | |
|---|---|---|---|---|---|---|---|
| R[Ω] | C[pF] | ||||||
| PKT512A PKT512A-RO PKT512AS PKT512AS-RO | 10:1 | 10M | 10 | 500 | 10〜25 | 0.7 | 1.2 |
| PKT520A PKT520A-RO PKT520AS PKT520AS-RO | 10:1 | 10M | 13 | 400 | 10〜25 | 0.9 | 2.0 |
| PKT530A PKT530A-RO PKT530AS PKT530AS-RO | 10:1 | 10M | 16 | 280 | 10〜25 | 1.25 | 3.0 |
| PKT920A PKT920A-RO PKT920AS PKT920AS-RO | 100:1 | 50M | 6 | 350 | 10〜25 | 1 | ２．０ |
| PKT930A PKT930A-RO PKT930AS PKT930AS-RO | 100:1 | 50M | 6 | 300 | 10〜25 | 1.17 | ２.0 |
* “-RO” in the model name corresponds to Read Out
* “S” in the model name corresponds to models in which a silicon tube covers the cable cover

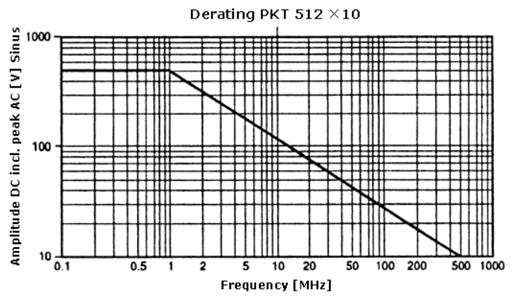

Characteristic graph Derating PKT 512 ×10
Accessories example
<Attention>
Accessories may change due to changes in specifications.
- Cable divider main unit
- Instruction manual
- Color ring 4 colors 3 pcs each
- Adjustment tool

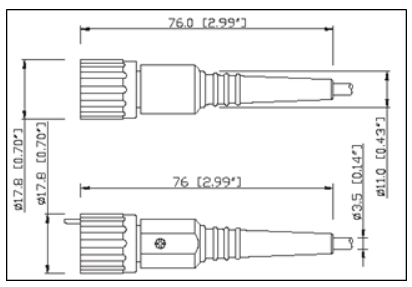

Exterior view
