Isolation Probe SE-6000/SE-6011
Ideal when you want to electrically isolate from the object to be measured. Ideal when you want to take measurements at a distance from the object to be measured to reduce the impact of noise
- Contribute to measurement safety in high voltage environments
- High-quality floating measurement is possible with excellent common mode removal performance
- Extremely effective for noise tolerant measurement
- Compatible with a wide range of applications such as lightning surges and charging tests
- Remote point measurements (switches, transport equipment, etc.)
- Failure cause analysis when an abnormal location occurs in a remote location
- (Up to four isolation units can be installed separately)

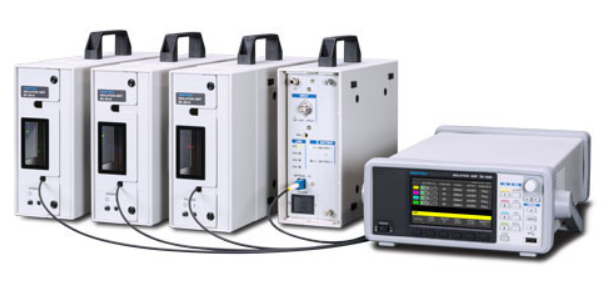

Isolation Probe

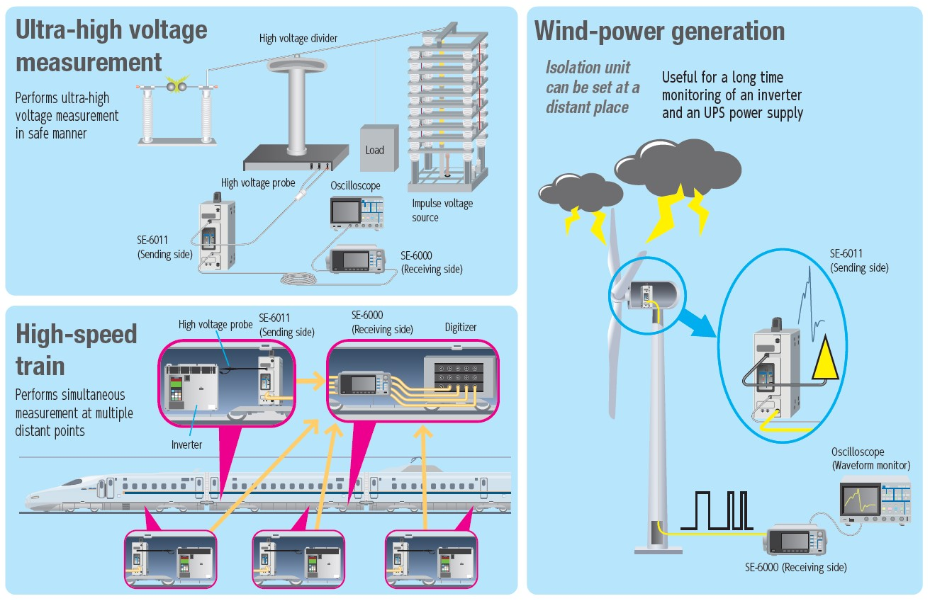

Measurement application

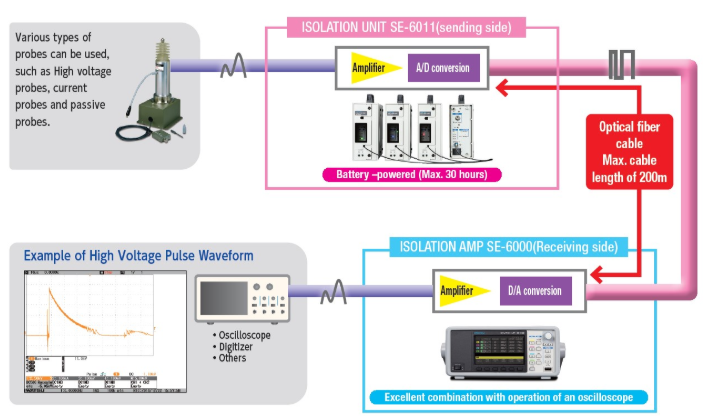

Connection image
specifications
Isolation probe SE-6000 / SE-6011 specifications
| Specifications | |
|---|---|
| Number of channels | 1 to 4 CH (up to 4 SE-6011s can be connected per SE-6000) |
| Frequency bandwidth (at the 50Ω termination) | 30MHz(-3dB) |
| Rise time (at the 50Ω termination) | 13.3ns (typical) |
| Receiving side Output impedance | 50Ω±1.5% |
| Bandwidth limit | 10MHz ±3MHz、1MHz ±0.3MHz、100kHz ±30kHz Attenuation characteristic：-6dB/oct |
| Probe sense | ■Auto search 1：1、10：1、100：1、1000：1 ■ Manual setting 1：1、5：1、10：1、20：1、50：1、100：1、200：1、500：1、1000：1、2000：1 |
| CMRR | 100dB(at 80Hz) |
| Frequency flatness (at the 50Ω termination) | DC～5MHz：±0.3dB 5MHz～10MHz：±1dB |
| Input impedance | 1MΩ(±1%)//20pF(±2pF) |
| Input range (Full scale) | ■ When an output range of ±1V (50Ω) / ±2V (1MΩ) is selected ±50mV, ±100mV, ±200mV, ±500mV, ±1V, ±2V, ±5V, ±10V, ±20V, ±50V ■ When an output range of ±0.8V (50Ω) / ±1.6V (1MΩ) is selected ±40mV, ±80mV, ±200mV, ±400mV, ±800mV, ±2V, ±4V, ±8V, ±20V, ±40V The input voltage range is the input range setting value – offset setting value |
| Input coupling | DC、AC、GND |
| AC coupling lower limit frequency (-3dB) | <10Hz |
| Output voltage | ■ When an output range of ±1V (50Ω) / ±2V (1MΩ) is selected 50Ω termination ±1V 1MΩ termination ±2V ■ When an output range of ±0.8V (50Ω) / ±1.6V (1MΩ) is selected 50Ω termination ±0.8V 1MΩ termination ±1.6V |
| Noise (RMS) | 0.05%FS |
| DC gain accuracy | ■ At 1MΩ termination After self-calibration at operating temperature ±0.3% At operating temperature ±1% ■ At 50Ω termination Add the following to the value at 1MΩ termination. (50Ω termination resistance error [%] – SE6000 output impedance error [%]) / 2 approximation formula) |
| Offset voltage range | Up to ±500mV range：±1V ±800mV to ±5V range：±10V ±8V to ± 50V range：±100V |
| Offset accuracy | ■ After self-calibration at operating temperature ±0.5% (set value) ±0.3% FS ±0.05mV (input conversion value) ■ Operating temperature ±0.5% (set value) ±5% FS ±1mV (input conversion value) |
| Nonlinearity | ±0.05%FS |
| Maximum input voltage | Between BNC center contact and BNC shell：400Vpeak Between BNC shell (housing) and earth：1kVpeak |
| Propagation delay | 1.089µs±0.015µs+5ns/m 5ns/m is the reference value for optical fiber cable delay. |
| Between CH skew | Within 20ns (excluding cable delay difference) |
| Calibration output | Square wave / 1kHz ±0.5% Output amplitude / 3V ±2% |
| Self-calibration | Self-calibrate amplitude and offset |
| Preheating time | 30 minutes |
| Auto range | Automatic adjustment of offset and range |
| Save/recall | Save destination：USB memory, internal memory (up to 10) / target data：Setup |
Isolation amplifier SE-6000 (receiving side) specifications
| Specifications | |
|---|---|
| Display | 4.3“ color LCD |
| Interface | USB：USB2.0 host (for save/recall) LAN：100Base-TX (for remote control) |
| Power supply A | AC 100V～240V (50/60Hz) |
| Power consumption | Up to 30VA |
| Operating temperature | 0ºC～+40ºC |
| Performance warranty temperature | +10ºC～+35ºC |
| Operating humidity | 5% to 80% RH (no condensation) |
| Storage temperature | -20ºC～+60ºC |
| Storage humidity | 5% to 80% RH (no condensation) |
| Altitude | 2,000m or less |
| External dimensions | Approx. 226W × 100H × 366D mm(excluding protrusions) |
| Main unit weight | Approx. 2.5kg |
| Accessories | User’s guide, instruction manual (CD), power cord, cord strap 1 each |
Isolation unit SE-6011 (transmitting side) specifications
| Specifications | |
|---|---|
| Battery (Optional) | A maximum of 2 pieces can be installed * Please be sure to purchase. |
| Operating time | New product, fully charged, at 25°C 1 battery：15 hours 2 batteries：30 hours |
| Operating temperature | -15ºC～+50ºC |
| Operating humidity | 5% to 80% RH (no condensation) |
| Storage temperature | -20ºC～+60ºC |
| Storage humidity | 5% to 80% RH (no condensation) |
| Altitude | 2,000m |
| External dimensions | Approx. 90W x 203H x 298D mm |
| Main unit weight | Approx. 2.4kg (excluding battery) |
Optical interface
| Specifications | |
|---|---|
| Light source semiconductor laser | Class 1 |
| Optical fiber | Single mode |
| Optical connector | SE-6011：Duplex LC connector × 1 SE-6000：Duplex LC connector x 4 |
Configuration
| Model Name | ||
|---|---|---|
| Isolation amplifier (receiving side) | SE-6000 | |
| Isolation unit (transmitting side) | SE-6011 | |
| Battery charger (2 pcs can be charged at the same time) * Necessary when charging the “dedicated Li-ion battery” | CH5050A | |
| Battery (for SE-6011, up to 2 batteries can be installed) | NH2054 | |
| Optical fiber cable | 3m | SE-605 |
| 10m | SE-606 | |
| 50m | SE-607 (Made-to-order) | |
| 200m | Please contact us. | |
