Sonic Series
An FET input probe that can measure high-frequency signals in high quality with a low input capacitance C (0.6pF) of the probe (2 types)

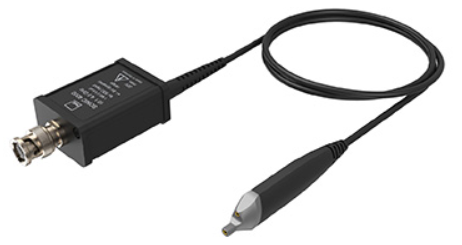

FET Probe Sonic 4000

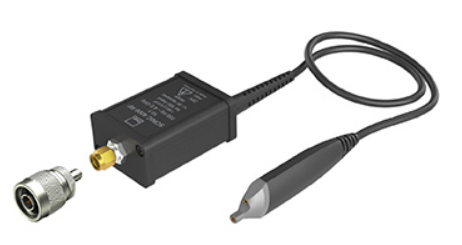

FET Probe Sonic 4000RF
* AC adapter included
Utilization scenes
- Crystal oscillator
- PLL synthesizer, High speed digital circuit
- Serial communication
- ECU circuit signal observation
- Common mode noise measurement of differential interfaces, etc.
- High-frequency small signal amplifier
- Signal purity and distortion analysis in combination with a spectrum analyzer
- Input/output impedance characteristics such as amplifiers using a network analyzer
- Frequency characteristics analysis
Specification
| Sonic 4000 / Active Single End Probe | Sonic 4000RF アクティブ・シングルエンドプローブ | |
|---|---|---|
| Frequency bandwidth (-3dB) | DC ～ 4GHz | 220Hz ～ 4GHz |
| Attenuation | 10：1 | |
| Accuracy | ±2% (single probe) | |
| Input range | ±8V | |
| Maximum input voltage (CAT I) | 20V | ±60V(ESD protected) IEC 61000-4-2 Contact Discharge Lecel 2、IEC 61000-4-2 Air Discharge Lecel 3 |
| Input RC | 1MΩ // 0.6pF | 2MΩ // 0.6pF |
| Measurement equipment side input coupling | 50Ω | |
| Cable length | Approx. 1.3m | |

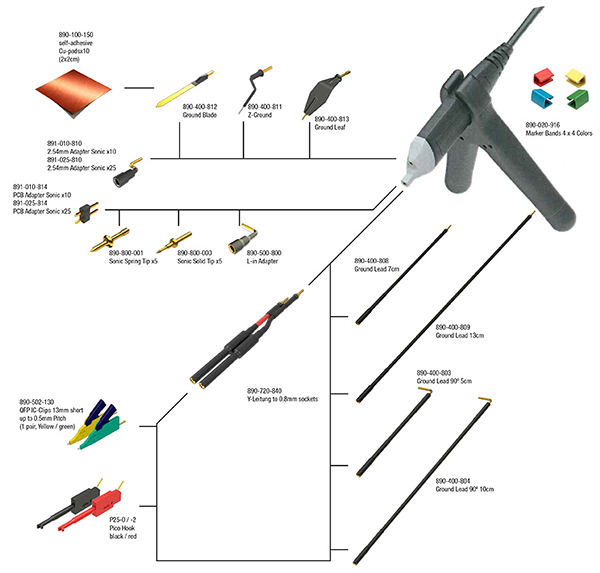

Optional accessories
