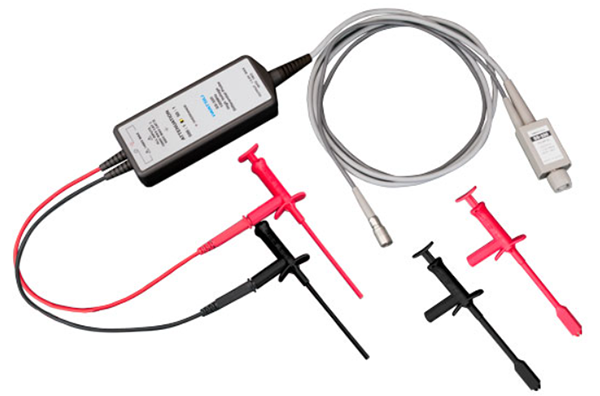

High Voltage Differential Probe SS-320

Supports measurements based on other than 0V. Ideal for measuring the actual operating waveform of inverter switching devices from commercial power supplies

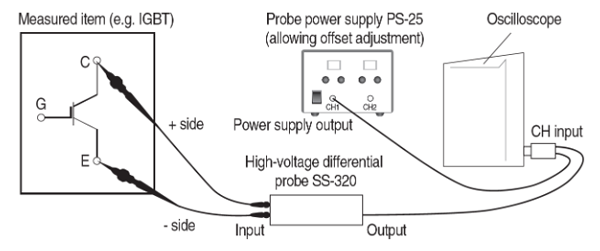

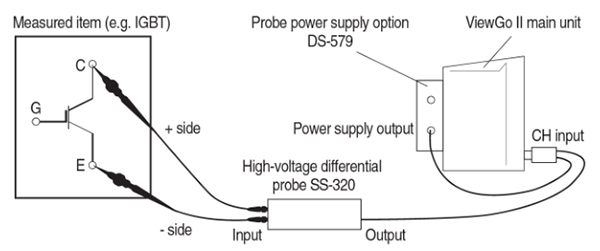

Application example

Specifications

	SS-320
Frequency bandwidth	DC to 100MHz (-3 dB) *See derating characteristics
Attenuation	50：1, 500：1
Accuracy	±2 %(20ºC ～ 30ºC) * When the input impedance is connected to an oscilloscope of 1MΩ ±1%
DC CMRR	-70dB* at 500VDC input voltage
AC CMRR	-80 dB(50 Hz/60 Hz) / -50 dB(100 kHz) / -50 dB(1 MHz)
Transmission delay	12.5 ns (500：1, typical), 13.5 ns (50：1, typical)
Input R // C	From each input to GND, 4MΩ or more // 7.0pF or less
Between inputs	8MΩ or more // 3.5pF or less
Maximum differential operating voltage	±1,400 V(DC＋AC peak, 500：1), ±140 V(DC＋AC peak, 50：1)
Maximum in-phase operating voltage	±1,400V (DC + AC peak), or ±1,000Vrms
Maximum non-destructive (Differential mode, in-phase mode)	±1,500 V(DC＋AC peak), 1,300 Vrms
Maximum output voltage range	When connected to an oscilloscope of ±2.8V * 1MΩ ±1%
Output offset	Adjustable with other devices to be combined
Connector output side/input side	BNC model/Special 6-core connector
Full length	2,000 mm ±30 mm
Power cable length	1,000 mm ±20 mm
Input lead length	405 mm ±5 mm
Weight	450g or less
Warranty temperature range	0°C to +50°C (no condensation)
Operating temperature and humidity	-10°C to +50°C (no condensation)/80% RH or less (at 40°C)
Accessories	Crocodile clip (red, black) 1 each, plunger hook clip (red, black) 1 each, instruction manual

Option

• Dedicated power supply PS-25
• Dedicated power supply DS-579 (ViewGoII dedicated option)

• Dedicated power supply is not included

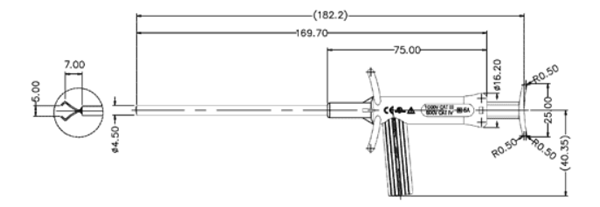

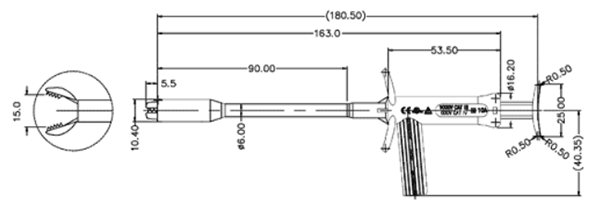

Accessory external dimensions
