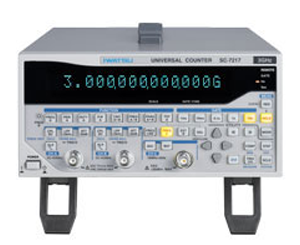

UNIVERSAL COUNTER　SC-7217A / SC-7215A

ユニバーサルカウンタ　SC-7217A / SC-7215A

Easy operations with single key strokes for each action. Universal counters feature frequency, cycle, time interval, pulse width, phase, frequency ratio, duty ratio, cumulative count, and peak voltage measurements for easy, versatile measurement. As a basic piece of measurement equipment for development work and technical education, they are also ideal for introduction to production and inspection lines.

Easy operations with single key strokes for each action.
Comparator and statistical operation function make it easy to improve the efficiency of line inspection work.
Unit conversion (rpm, speed, etc.) is possible using the scaling operation function.
It is easy to check the waveform amplitude by measuring the peak voltage of the input signal.
Streamline routine inspection work by saving/recalling panel setup.
USB, LAN, digital I/O are equipped as standard.
A highly expandable set of options.
• RS-232 GPIB interface
• USB host interface
• High-stability clock option

Measurement function

Measurement function		SC-7217A				SC-7215A
		Gate
		Internal	EXT-B	MANUAL	SGL	Internal	EXT-B	MANUAL	SGL
FREQ-A	Frequency	○	○	×	○	○	○	×	○
FREQ-B	Frequency	○	×	×	○	○	×	×	○
FREQ-LINE	Frequency	△	×	×	×	△	×	×	×
FREQ-C	Frequency	○	○	×	×	×	×	×	×
PERI-A	Period	○	○	×	○	○	○	×	○
DUTY-A	Duty	○	×	×	○	○	×	×	○
P.W-A	Pulse width	○	×	×	○	○	×	×	○
TOT-A	Addition counting	○	○	○	×	○	○	○	×
T.INT A-B	Interval	○	×	×	○	○	×	×	○
FREQ A/B	Frequency ratio	○	×	×	×	○	×	×	×
PHAS A-B	Phase	○	×	×	○	○	×	×	○

○… Selectable × … Disabled △… Disabled for 10μ, 100μ, 1ms, 10ms

Various interfaces and options

Standard interface

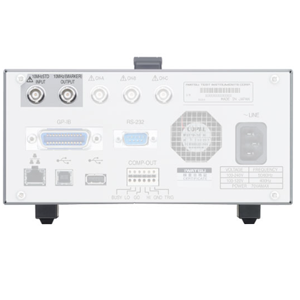

10MHz STD INPUT, 10MHz / (MARKER) OUTPUT

■10MHz STD INPUT

A terminal that inputs a more stable 10MHz reference frequency from the outside. In the SYSTEM menu, when RefClk: SOUR = EXT is set, the internal reference oscillator is detached and the measurement is performed at a frequency of 10MHz of the external reference oscillator.

■10MHz / (MARKER) OUTPUT

A terminal that outputs an internal 10MHz reference frequency or marker signal. Outputs an internal reference signal of 10MHz.

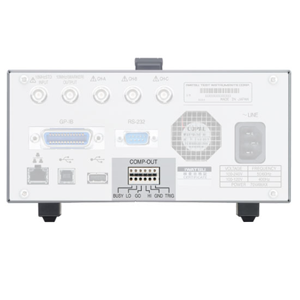

Digital I/O interface

A terminal that outputs an internal 10MHz reference frequency or marker signal. Outputs an internal reference signal of 10MHz.

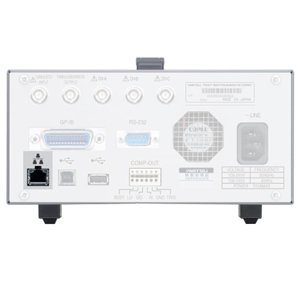

LAN interface

A connection terminal for the LAN interface It can be connected to a PC, etc. and can be remotely controlled from the outside.

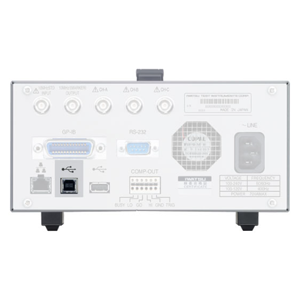

USB (for remote control) interface

A connection terminal for the USB interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.

Dedicated Options

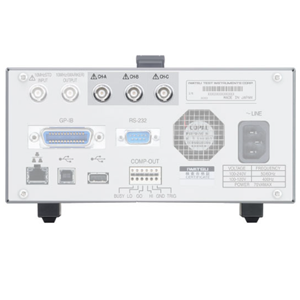

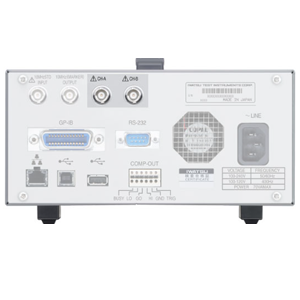

SC-709 (option) CH-A/CH-B rear input for SC-7215A/7215 only

When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B input terminal to the rear.

SC-710 (option) CH-A/CH-C rear input for SC-7217A/7217 only

When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B/C input terminal to the rear.

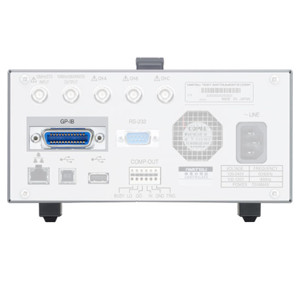

SC-711 (option) GPIB interface

A connection terminal for the GPIB interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.

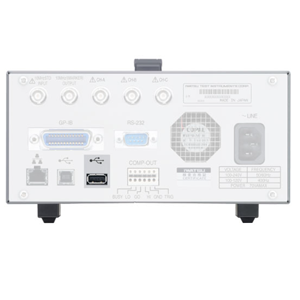

SC-713 (option) USB host (for memory connection) interface

A connection terminal for USB memory. Measurement data can be saved to a USB memory device and panel setup can be saved/called to a USB memory device.

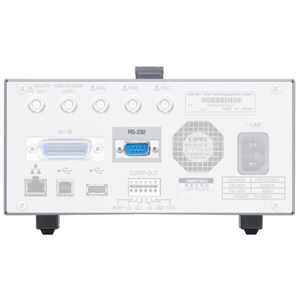

SC-714 (option) RS-232 interface

A connection terminal for the RS-232 interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.

SC-715 (option) Standard oscillator option

Temperature characteristics	±±20 ppb * Start-up characteristics
in the range of 0°C to +40°C with +25°C as reference	3 minutes (time to reach within ±50 ppb based on the frequency after 60 minutes of power on) * Change over time
at +25°C	±10 ppb/day (one day frequency change based on the frequency 48 hours after power-on) * At +25°C ±100 ppb/year (one year frequency change based on the frequency 10 days after power-on). * At +25°C

SC-716 (option) Standard oscillator option

Temperature characteristics	±5 ppb * Start-up characteristics
in the range of 0°C to +40°C with +25°C as reference	10 minutes (time to reach within ±100 ppb based on the frequency after 60 minutes of power on) * Change over time
at +25°C	±0.5 ppb/day (one day frequency change based on the frequency 30 days after power-on). * At +25°C ±30 ppb/month (one month frequency change based on the frequency 30 days after power-on). * At +25°C ±50 ppb/year (one year frequency change based on the frequency 30 days after power-on). * At +25°C

Main Specifications
Option Specifications
FAQ

Main Specifications

				SC-7217A	SC-7215A
CH-A CH-B	Input impedance			50Ω ±1.5% / 1MΩ± 1.5% 　16pF ±3pFSC-7215
	Input withstand voltage	50Ω / 1MΩ		7Vrms / 200Vpk
	Frequency bandwidth	DC / AC		DC ～ 450MHz / 10Hz ～ 450MHz
	Input withstand voltage	ATT OFF / ON		±2.5V / ±50V
	Trigger level accuracy	ATT OFF / ON		±2%±25mV / ±2.5%±500mV
	Slope switching/bandwidth restriction/noise elimination			＋/－ / 10kHz / OFF/ON
EXT-B	Input signal range	Pulse width/frequency		500ns min / 1MHz max
CH-C	Input impedance / SWR / maximum input power			50Ω AC-coupling/2.0 or less/+30dBm	－
	Frequency bandwidth			100MHz ～ 3GHz	－
	AGC			ON/OFF	－
	Burst detection	Functions		ON/OFF	－
		Detection sensitivity		〜1.2GHz：-20dBm ～ 3GHz : -10dBm	－
		burst detection delay time		10μs	－
Measurement function	FREQ A, FREQ B	Digits		Up to 12 digits (at 1 second gate)
		Measurement range		At single: 6mHz ~ 250MHz,Time/at EXT-B gate: 12mHz ~ 450MHz (However, the synchronization of the measured signal must be less than or equal to ⅓ of the gate time)
		gate selection		Single/EXT-B/time
	FREQ C	Digits		Up to 12 digits (at 1 second gate)	－
		Measurement range		100MHz to 3GHz 1/16 prescaler	－
		gate selection		EXT-B/time	－
	FREQ LINE	Measurement range/gate selection		45Hz to 440Hz/time
	PERIOD A	Measurement range	Single/time	At single: 4ns to 166s (synchronization of the measured signal must be less than or equal to ⅓ of the gate time)
	PERIOD A	Gate selection		Time/at EXT-B gate: 2.2ns ~ 83s
	DUTY A	Input signal range	Pulse width/frequency	6ns min / 80MHz max
		Measurement range	Single/time	0.01μ～ 99.999,999,99% / 0.2μ ～ 99.999,999,8%
		Gate selection		Single/time
	PULSE WIDTH A	Input signal range	Pulse width/frequency	6ns min / 80MHz max
		Measurement range	Single/time	6ns to 171s/6ns to approx. 1/2 gate time
		Gate selection		Single/time
	TIME INTERVAL A→B	Input signal range	Pulse width/frequency	6ns min /80MHz max
		Measurement range	Single/time	6ns to 10,995s / 6ns to approx. 1/2 gate time
		Gate selection		Single/time
	FREQ A/B	Input signal range frequency		250MHz max
	FREQ A/B	Measurement range/gate selection		1E-9 to 1E +9 / time
	PHAS A→B	Input signal range	Pulse width/frequency	6ns min / 80MHz max
		Measurement range	Single/time	0.1μ ~ 359.999,999,9° / 1μ ~ 359.999,999° (However, the period of the measured signal must be less than or equal to 1/2 of the gate)
		Gate selection		Single/time
	TOT A	Input signal range	Pulse width/frequency	2ns min / 250MHz max
	TOT A	Gate selection/measurement range		ANUAL / EXT-B / time / 0 to 4,294,967,295 count
	Peak voltage measurement	Measurement frequency/Measurement speed		150Hz ～ 150MHz ／2秒以下
	Peak voltage measurement	Measurement voltage range	ATT OFF / ATT ON	ATT OFF ：±2.5V ATT ON：±50V
Time gate	Setting range			10μs ～ 10s
Time gate	Setting resolution			10μs ~ 990μs: 10μs, 0.1ms ~ 9.9ms: 0.1ms, 1ms ~ 99ms: 1ms, 10ms ~ 990ms: 10ms, 0.1s ~ 10s: 0.1s However, the setting range of FREQ LINE is from 0.1s to 10s.
Measurement action/operation				Repeat/single/HOLD/smoothing (moving average), scaling, comparator, statistics (MAX, MIN, σ, average)
Panel setup/data storage				Internal memory (10) or USB memory (option)/up to 500,000 (volatile memory)
Internal reference clock	Temperature characteristics			±1 ppm (range of 0 to +40°C with +25°C as reference)
Internal reference clock	Changes over time/short-term stability			±0.1ppm/month, ±1ppm/year /±1ppb/s
Interface	USB / LAN / DIO			USB2.0 HS/100base-TX/Output: HI/LO/GO/BUSY
10MHz STD IN	Input impedance/input frequency/input sensitivity			Approx. 850Ω (at 10MHz) AC coupling/10MHz ±50Hz/100mVrms
Marker/STD output	Functions			STD/marker is selected and output according to the setting
Marker/STD output	Output impedance/marker output/STD output			50Ω ±10%/+1Vo-p (0V output when measuring p)/10MHz sine wave 1Vp-p or more (50Ω when terminated)
Power supply	Voltage, frequency			100V ~ 240V ±10% / 50 ~ 60Hz±5%(100V ~ 240V) / 400Hz±10%(100V ~ 120V)
Power supply	Power consumption			70VA(35W) max
External dimensions/mass				Approx. 210W × 99H × 353D mm/Approx. 3kg
Accessories				Product user’s guide, manual (CD), power cord
Environmental				0°C to +40°C 80%RH or less no condensation

Factory-Installed Option Specifications

	Model Name		SC-7217A	SC-7215A
CH-A/CH-B rear input (SC-7215A only)	SC-709		－	When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B input terminal to the rear.
CH-A/CH-B/CH-C rear input (SC-7217A only)	SC-710		When you want to input signals from the rear, such as when you mount this product on the rack, change the CH-A/B/C input terminal to the rear.	－
GPIB interface	SC-711		The connection terminal of the GPIB interface. It can be connected to a PC, etc. and can be remotely controlled from the outside.
USB host Interface (For memory connection)	SC-713		The terminal for USB memory connection.
RS-232 interface	SC-714		The connection terminal of the RS-232 interface.
OCXO (High-stability clock)	SC-715	Temperature characteristics	±20 ppb (range of 0 to +40°C with +25°C as reference)
	SC-715	Change over time	100 ppb/year (one year frequency change based on the frequency 10 days after power-on). At +25°C)
	SC-716A	Temperature characteristics	±5 ppb (range of 0 to +40°C with +25°C as reference)
		Change over time	±0.5 ppb/day (one day frequency change based on the frequency 30 days after power-on). At +25°C)
		Change over time	±50 ppb/year (one year frequency change based on the frequency 30 days after power-on). At +25°C)
Interface			GPIB IEEE 488-1 compliant, RS-232 with full remote function, host for USB memory device connection (not remote interface)
