Large Current/Broadband Current Probes SS-500 Series (Hall Element Type)
SS-500 Series Lineup
30A, 5A, 0.5A Range-equipped models
5A range model
Large current-compatible model
SS-530 series
SS-520 series
SS-570/560/SS-550/540
Max 30Arms DC ～ 120MHz
Max 30Arms DC ～ 50MHz
Max 5Arms DC ～ 120MHz
Max 5Arms DC ～ 50MHz
Max 500Arms DC ～ 2MHz
Max 150Arms DC ～ 10MHz
Max 30Arms DC ～ 50MHz
Max 30Arms DC ～ 100MHz
Utilization scenes
Observe microcurrents
[ SS-531 / SS-530 / SS-521 / SS-520 ]

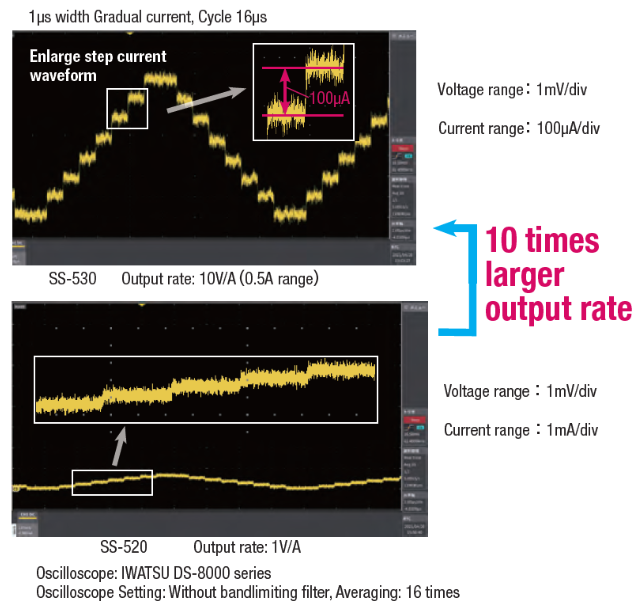

In combination with a high-resolution oscilloscope, a 100µA stepped current can also be observed in high quality. The device also supports the observation of 100µA ripple currents.
Observe small currents with low noise
With a high S/N ratio and 10x output rate, you can observe microcurrents more clearly.
Observe high-speed rising currents

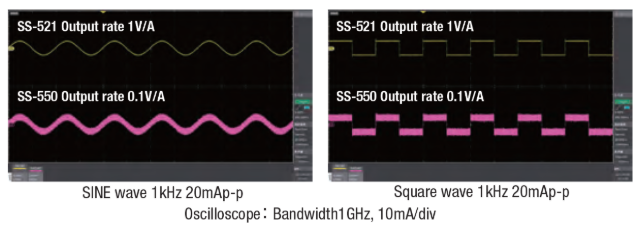

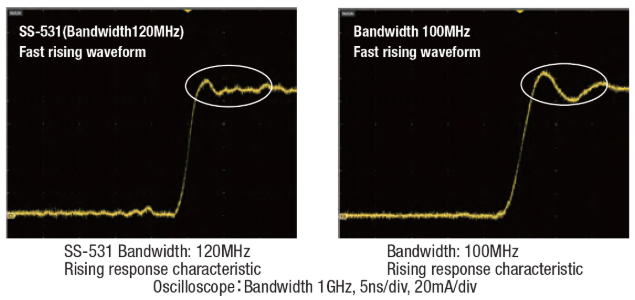

This device supports frequency bands up to 120MHz (SS-531/521), allowing current waveforms with high frequency components to be observed with low distortion.
Product Overview
Current probeSS-531, SS-530
Equipped with 3 ranges of 30A, 5A and 0.5A
Observation from microcurrents to large currents in a single unit
【Frequency bandwidth 】
SS-531：DC～ 120MHz ( 30 / 5 / 0.5Arms)
SS-530：DC～ 50MHz ( 30 / 5 / 0.5Arms)
Current probeSS-521, SS-520
1mA microcurrent waveforms can be observed with a high S/N ratio.
【Frequency bandwidth 】
SS-531：DC～ 120MHz (Max 5A rms)
SS-530：DC～ 50MHz ( Max 5A rms)
Current probe SS-570/560
Large-current model, large diameter clamp type
【Frequency bandwidth 】
SS-570：DC～ 2MHz (Max 500A rms)
SS-560：DC～ 10MHz ( Max 150A rms)
Current probe SS-550/540
Broadband model
【Frequency bandwidth】
SS-550：DC～ 100MHz (Max 30A rms)
SS-540：DC～ 50MHz ( Max 30A rms)

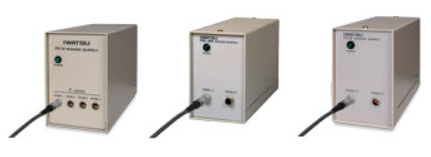

Accessory(Power supply for current probe, conversion cable for power connection)
Current probe power supply PS-54 (4 outputs)
Current probe power supply PS-52 (2 outputs)
【Compatible probes】
SS-531 / SS-530 / SS-521 /
SS-520 / SS-570 / SS-560 /
SS-550 / SS-540
【Compatible probes】
SS-521 / SS-520 / SS-570 /
SS-560 / SS-550 / SS-540 /
- There are limits to the number of PS-54 and PS-52 that can be connected simultaneously depending on the measured current value, even for compatible probes.
| PS-54 | PS-52 | |
|---|---|---|
| Number of power receptacles | 4 | 2 |
| Output voltage | ±12V ±0.5V | |
| Rated output current (Sum value of each channel) | Up to 2.5A | Up to 600mA |
| Ripple voltage (Rated output current) | 50mVp-p or less | 3mVp-p or less |
| Power consumption (Rated output current) | 170VA | 20VA |
| Operating temperature and humidity | 0 to 40°C (no condensation), 80% RH moisture content or less | |
| Supply voltage | AC100～240V(50/60Hz) | AC100V(50/60Hz) (Supports 120V, 220V, 240V) |
| Dimensions (mm) | Approx. 80 W×119 H×200 D | Approx. 73 W×110 H×186 D |
| Weight | 1.1kg ± 100g (excluding accessories) | |

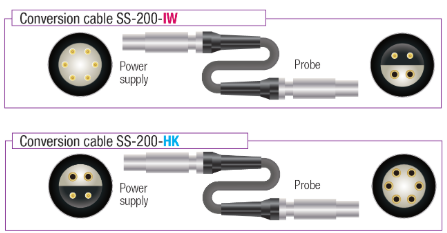

Power conversion cableSS-200-IW / SS-200-HK
If you use our oscilloscope DS-8000 or an external power supply, you may need a conversion cable.
| SS-531/530 | SS-521/520/570/560/550/540 | SS-270/260/250/240A *2 | |
|---|---|---|---|
| DS-8000 DS-579 *1 | SS-200-IW | SS-200-IW | Not required |
| PS-54 | Not required | Not required | SS-200-HK |
| PS-52 | Connection impossible | Not required | SS-200-HK |
| PS-26 *2 | Connection impossible | SS-200-IW | Not required |
- Probe power option for DS-5600/5400A Series.
- SS-270/260/250/240A and PS-26 are discontinued.
SS-500 Series Product Specifications

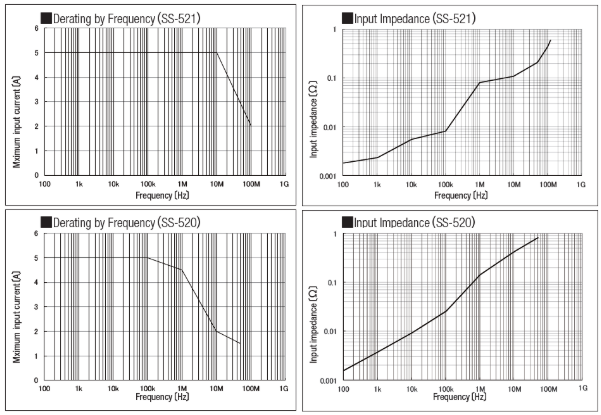

| SS-531 | SS-530 | SS-521 | SS-520 | |
|---|---|---|---|---|
| Frequency bandwidth (-3dB) | DC～120MHz | DC～50MHz | DC～120MHz | DC～50MHz |
| Rise time(10～90%) | 2.9ns or less | 7.0ns or less | 2.9ns or less | 7.0ns or less |
| Maximum rated current | 30A range：30Arms, 5A range：5Arms, 0.5A range:：0.5Arms (DC, and sine wave) | 5Arms (DC, and sine wave) | ||

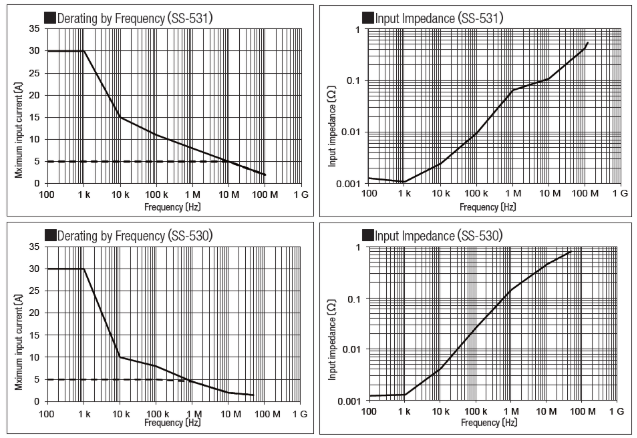

| Maximum peak current | 30A range：±50Apeak (After within 2 seconds, a 10-second pause period is required) 5A range：±7.5Apeak 0.5A range：±0.75Apeak (Less than 10MHz) ±0.3Apeak (10MHz or more) | ±7.5Apeak (discontinuous) | ||
| Output rate | 30A range：0.1V/A rate, 5A range：1V/A rate, 0.5A range：10V/A rate | 1 V/A | ||
| Output accuracy (Typ.) | 30A range：±1.0% rdg. ±1mV, ±3.0% rdg. ±1mV 5A range：±1.0% rdg. ±1mV, ±3.0% rdg. ±1mV 0.5A range：±1.0% rdg. ±10mV, ±3.0% rdg. ±10mV (DC, sine wave 45-66Hz, within the maximum peak current of each current range) | ±1.0%rdg.±1mV, ±3.0%rdg.±1 mV (DC, sine wave 45 to 66Hz, 0 to 5Arms) | ||
| Noise | 75µArms or less (observed on a 20MHz oscilloscope) | 75µArms or less (observed on a 30MHz oscilloscope) | ||
| Maximum rated power | 7.8VA (at maximum continuous input) | 3.2VA (at maximum continuous input) | ||
| Supply voltage | DC ± 12 V ± 0.5 V | |||
| Operating temperature and humidity range | 0°C to +40°C, 80% RH or less (no condensation) | |||
| Storage temperature and humidity range | -10°C to +50°C, 80% RH or less (no condensation) | |||
| Operating altitude | Up to altitude 2,000m | |||
| Effects of magnetic field | 5mA or less (at DC and 60Hz,400A/m magnetic field) | 20mA or less (at DC and 60Hz,400A/m magnetic field) | 5mA or less (at DC and 60Hz,400A/m magnetic field) | 20mA or less (at DC and 60Hz,400A/m magnetic field) |
| Measurable conductor diameter | Φ 5mm or less | |||
| Cable length | Sensor cable：1.5m Power cable：1.0m Relay box/termination unit：0.15m | Sensor cable：1.5m Power cable：1.0m | ||
| Dimensions (mm) | Sensor unit：155(W)×18(H)×26(D) Termination unit：29(W)×83(H)×40(D) Relay box：45(W)×120(H)×25(D) | Sensor unit：155(W)×18(H)×26(D) Termination unit：29(W)×83(H)×40(D) | ||
| Weight | 約370gApprox. 370g約370g | Approx. 250g | ||
| Power supply (optional) | PS-54 (Maximum number of connections：2) | PS-54 (maximum number of connections：2) PS-52 (maximum number of connections：1) | ||
| Compliant standards | Safety：EN61010, EMC：EN61326 | |||
| Accessories | Instruction manual (1), case (1) | |||

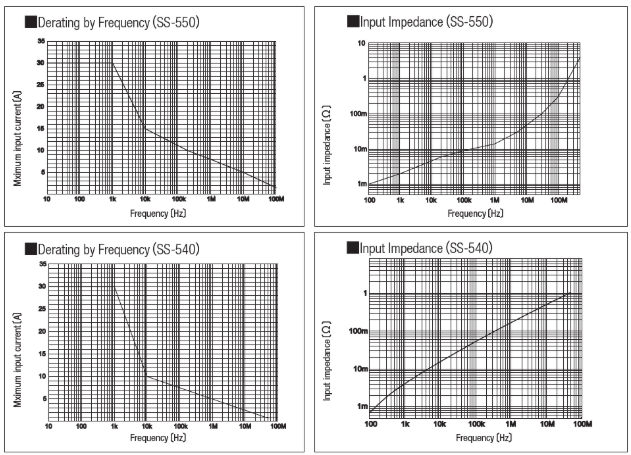

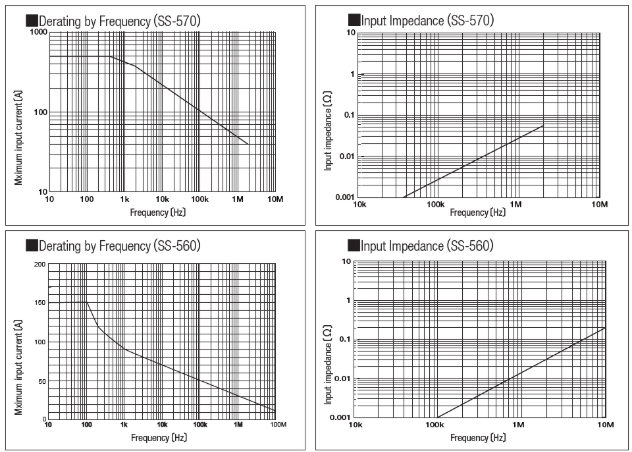

| SS-570 | SS-560 | SS-550 | SS-540 | |
|---|---|---|---|---|
| Frequency bandwidth (-3dB) | DC～2MHz | DC～10MHz | DC～100MHz | DC～50MHz |
| Rise time (10～90%) | 175ns or less | 35ns or less | 3.5ns or less | 7.0ns or less |
| Maximum rated current | 500Arms | 150Arms | 30Arms | |
| Maximum peak current | 700Apeak (Discontinuous) | 300Apeak (Discontinuous) 500Apeak (Pulse width ≤ 30µs) | 50Apeak (discontinuous) | |
| Output rate | 0.01 V/A | 0.1 V/A | ||
| Output accuracy | ～500A ±1.0%rdg.±5mV, ～700Apeak ±2.0%rdg. (DC, sine wave 45 to 66 Hz) | ～150A ±1.0%rdg.±1mV, ～300Apeak ±2.0%rdg. (DC, sine wave 45 to 66 Hz) | ～30A ±1.0%rdg.±1mV, ～50Apeak ±2.0%rdg. (DC, sine wave 45 to 66 Hz) | |
| Noise | 225mArms or less (With measurement equipment with a bandwidth of 20MHz) | 2.5mArms or less (observed on a 20MHz oscilloscope) | ||
| Maximum rated power | 7.2VA (at maximum continuous input) | 5.5VA (at maximum continuous input) | 5.3VA (at maximum continuous input) | 5.6VA (at maximum continuous input) |
| Supply voltage | DC ± 12 V ± 0.5 V | DC ±12V±1V | DC ±12V±0.5V | |
| Operating temperature and humidity range | 0°C to +40°C, 80% RH or less (no condensation) | |||
| Storage temperature and humidity range | -10°C to +50°C, 80% RH or less (no condensation) | |||
| Operating altitude | Up to altitude 2,000m | |||
| Effects of magnetic field | 800mA or less (at DC and 60Hz,400A/m magnetic field) | 150mA or less (at DC and 60Hz,400A/m magnetic field) | 5mA or less (at DC and 60Hz,400A/m magnetic field) | 20mA or less (at DC and 60Hz,400A/m magnetic field) |
| Measurable conductor diameter | Φ 20mm or less | Φ 5mm or less | ||
| Cable length | Sensor cable：2.0m , Power cable：1.0m | Sensor cable：1.5m , Power cable：1.0m | ||
| Dimensions (mm) | Sensor unit：176(W)×69(H)×27(D)mm Termination unit：27(W)×55(H)×18(D)mm | Sensor unit：175(W)×18(H)×40(D)mm Termination unit：27(W)×55(H)×18(D)mm | ||
| Weight | Approx. 520g | Approx. 500g | Approx. 240g | Approx. 230g |
| Power supply (optional) | PS-54、PS-52 | |||
| Compliant standards | Safety：EN61010, EMC：EN61326 | |||
| Accessories | Instruction manual (1), case (1) | |||
