Remote Control Service G-REMOTE
This service includes Remote control service for GL860 and GL260 connected to the Internet and Data storage service for saving recorded data of the GL series on a server.
*This service has G-REMOTE server and G-DRIVE server for each of the above functions.
Please check the followings before applying for G-REMOTE.
Remote control service
- Easy remote control of GL860 and GL260 from a web browser.
- Simple and easy-to-use control screen.
- Easy setup by same menu design as the GL main unit.
- All communications are encrypted.
Available Model: GL860, GL260
* Wireless LAN unit B-568 (optional item) is required.
* B-568 is available in limited region.

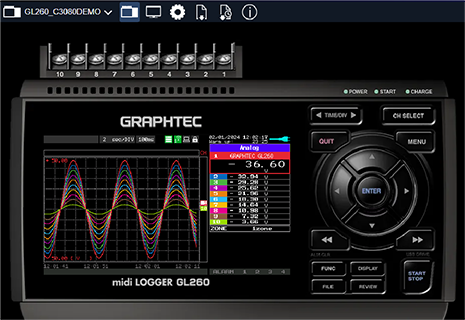

Control & waveform display
Number of GL860 and GL260 can be remotely controlled simultaneously
| Free trial | Basic | Standard | Premium |
|---|---|---|---|
| 1 unit | 1 unit | 5 unit | 10 unit |
New Functions
In addition to the Remote control service, more convenient services are available for all plans.

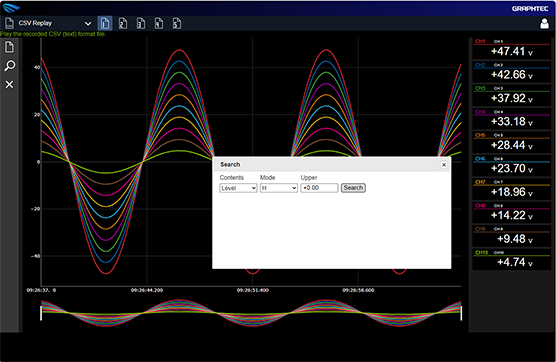

CSV play function

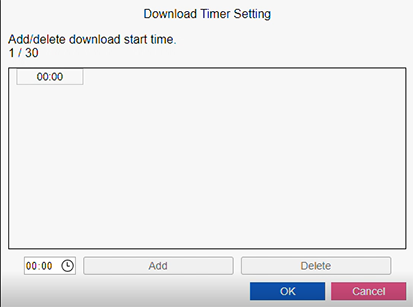

Download timer
Play the data recorded in CSV files on G-REMOTE
Transfer the data from a logger to a PC automatically at specified time

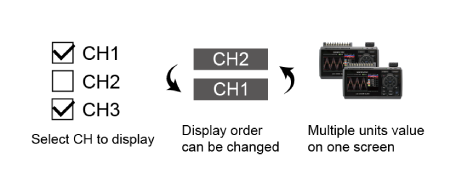

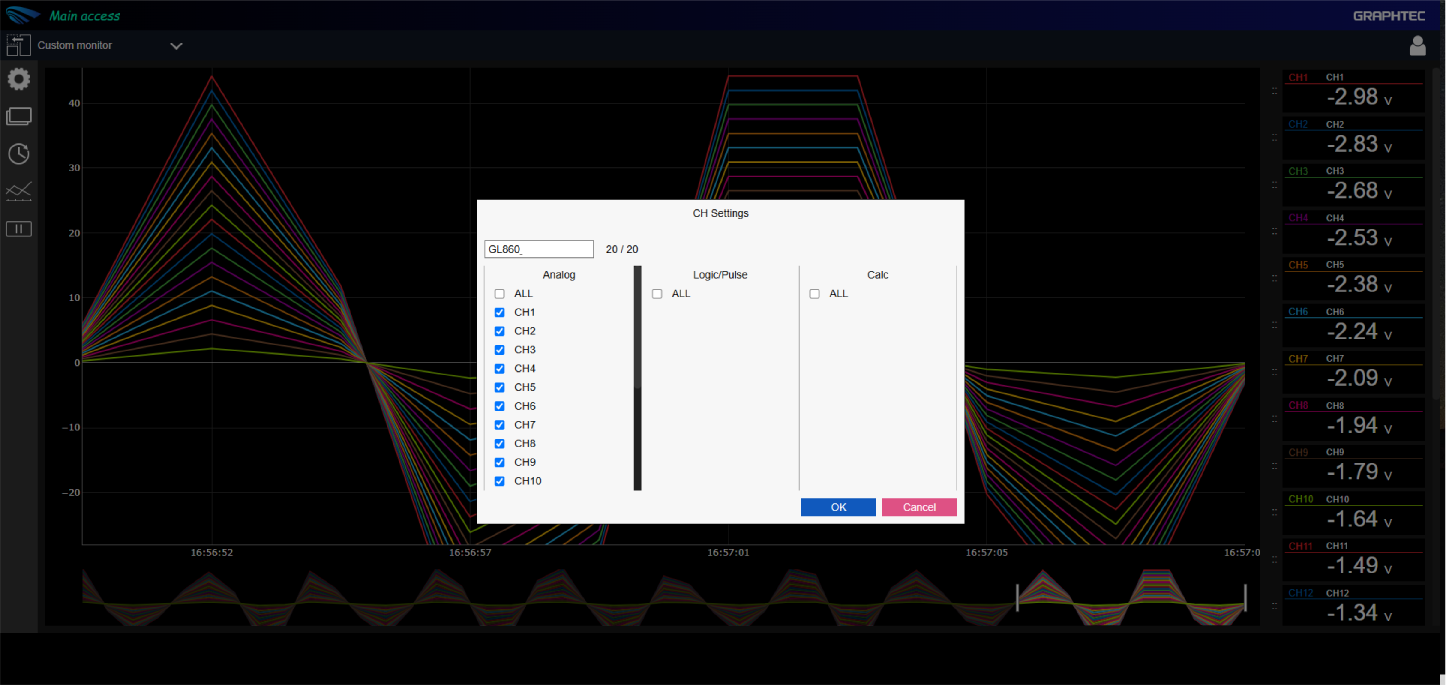

Custom monitor
Customize the display of waveform and digital value
- Values measured with different data loggers can be displayed on a single waveform screen
- Multiple data loggers can be displayed on a single waveform screen
- Display CH is selectable
- Display positions of digital values can be rearranged.

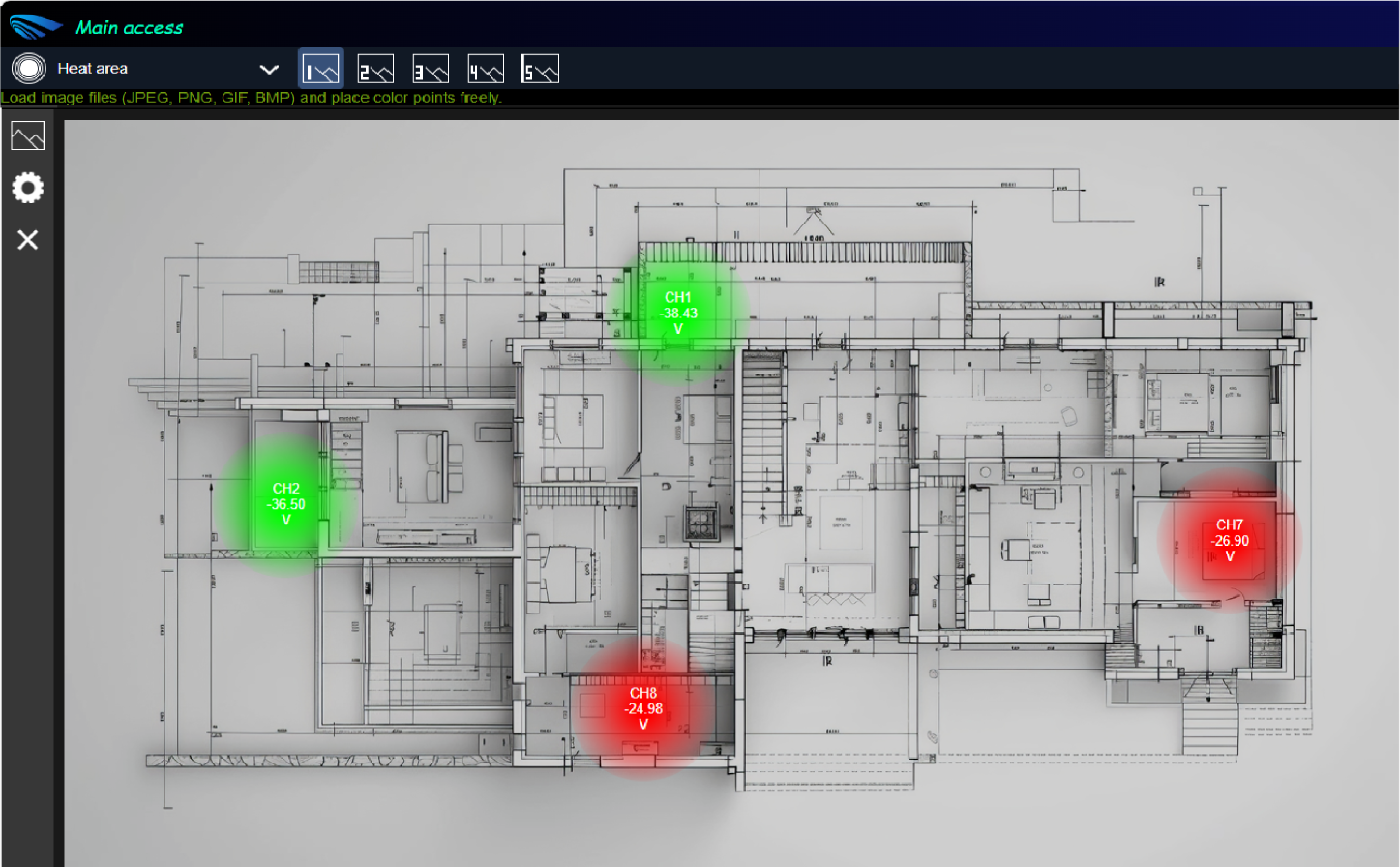

Heat area
Place color points for each CH on the image and visualize their condition
- Users can use their existing images

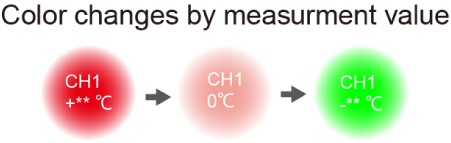

- Color points show the current measurement values
- Color of points can be changed
- Color points can be freely positioned within the image

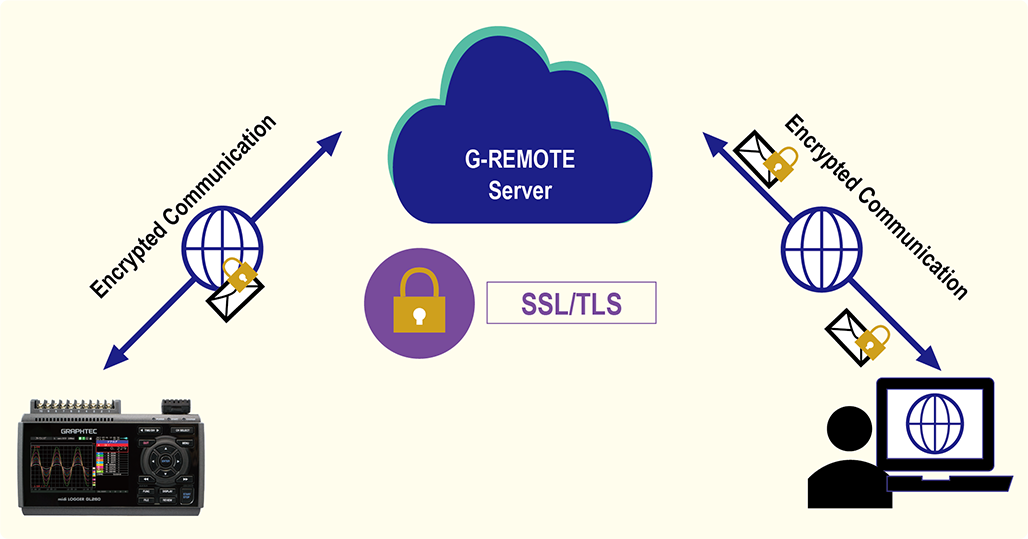

SSL/TLS communication between cloud server (G-REMOTE) and PC
All communications are encrypted.
Full security system is used.

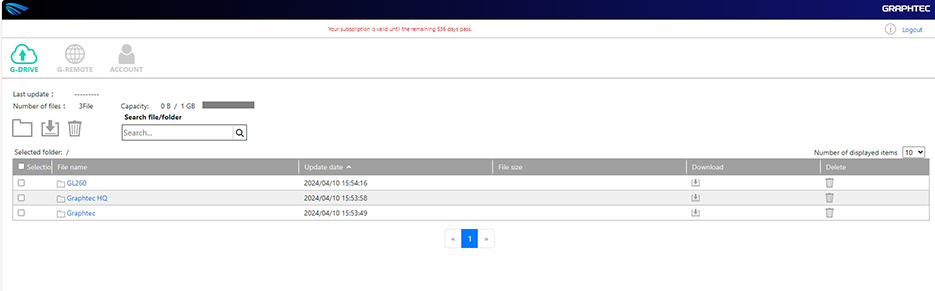

Data storage service
- Cloud storage is available in all plans
- Backup of recorded data
(Can be specified as a storage destination for FTP backup function) - Secure FTPS communication with a PC
Available Models
GL7000, GL2000, GL980, GL860, GL840, GL240, GL260 and GLT400.
Max. 10GB data storage and 30 units can be accessed simultaneously
Max. 10GB
| Free trial | Basic | Standard | Premium |
|---|---|---|---|
| 1GB | 1GB | 5GB | 10GB |
Max. 30units
(Total of data loggers and PCs)
| Free trial | Basic | Standard | Premium |
|---|---|---|---|
| 3 units | 3 units | 15 units | 30 units |
Recording time guide per 1GB
| CH数 | Sampling speed | Recording time (approx.) |
|---|---|---|
| 8ch | 1ms | 14 hours |
| 10ch | 100ms | 50 days |
| 10ch | 1s | 500 days |
| 100ch | 1min | 3000 days |
| 200ch | 10min | 16000 days |
Backup to cloud server using the FTP function of GL series
| Backup Interval | Backup File Format | |
|---|---|---|
| GL series | Every 1 / 2 / 6 / 12 / 24 hours | GBD format / CSV format *1 *2 |
*1 GL7000 is available in GBD format only. GL840/GL860 have a function to delete data in the unit on successful backup.
*2 Depending on the model, sampling speed is limited in CSV format: maximum 10 ms for GL980/GL2000, and maximum 100 ms for GL860/GL840/GL240/GLT400.
Secure FTPS data transfer
FTPS communication between
cloud server (G-DRIVE) and PC
Download and playback data
Data download
Data playback
- Download software “Download App”
- After installing the software on the PC, access the cloud server and select the file to download.
・Software GL-Connection
Download from G-DRIVE via PC application (Timer function to download data at a specified time is installed)
*The app and GL-Connection can be downloaded free of charge from our website.
G-REMOTE Terms of Use and Security Sheet
Please check the followings before applying for G-REMOTE.
